Drill Compressor

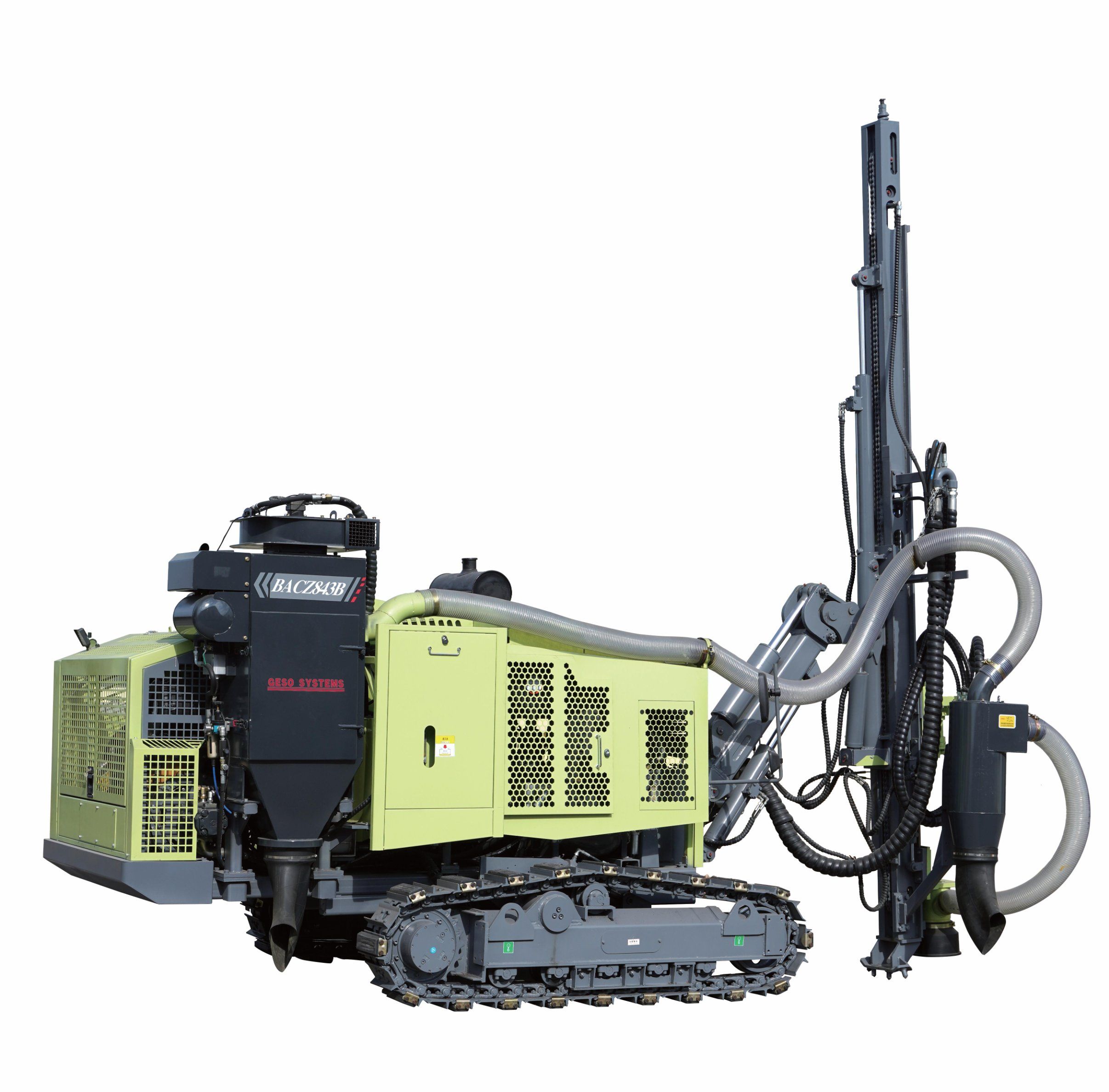

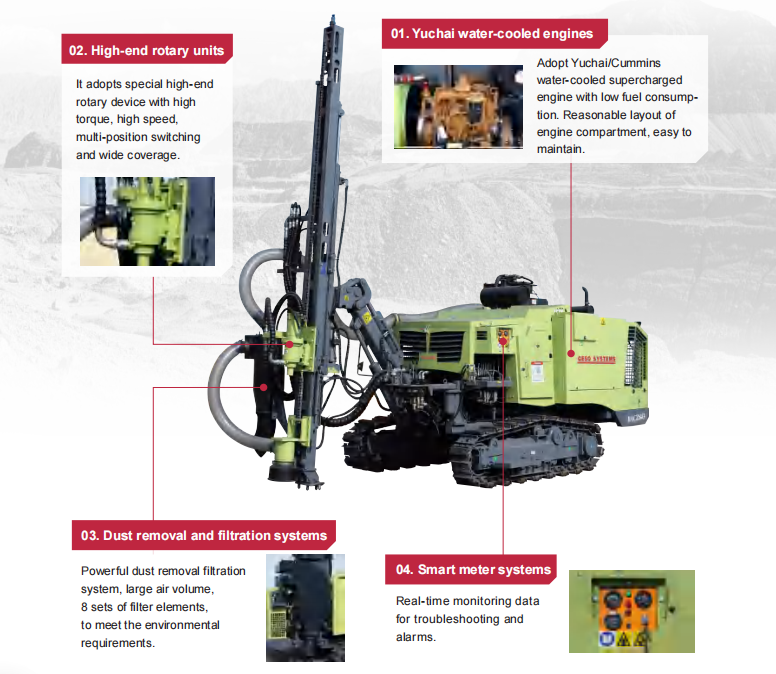

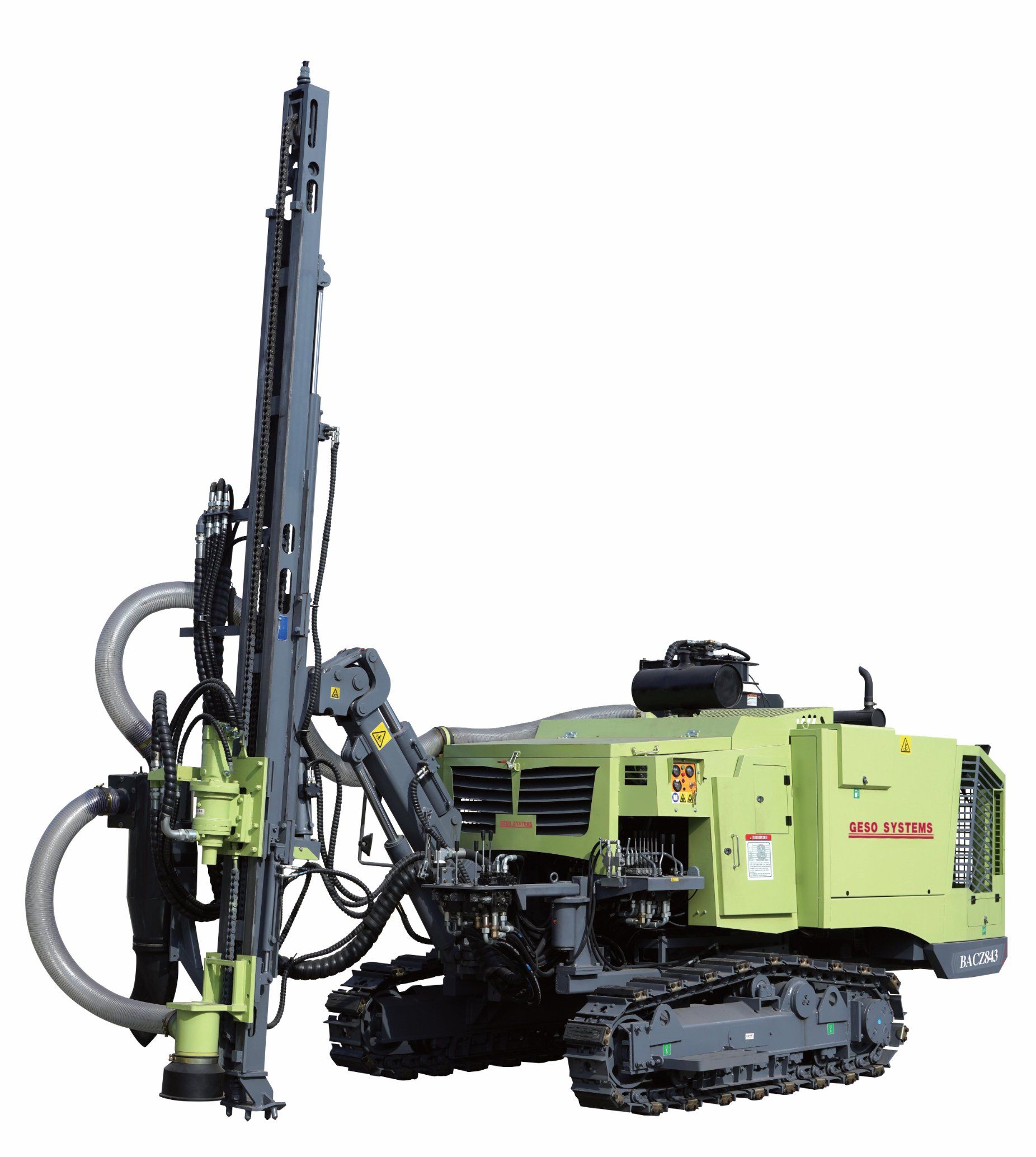

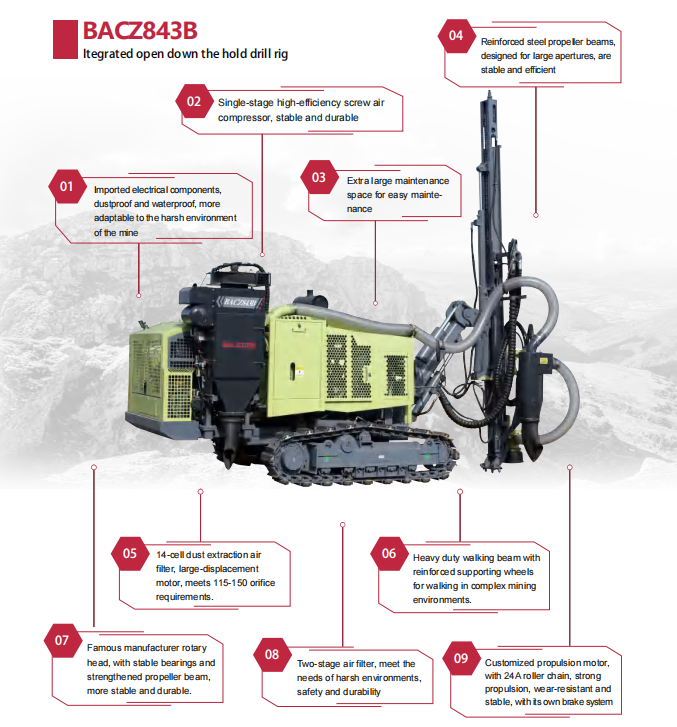

Geso drill compressor BACZ843 Integrated buɗaɗɗen rijiyar rijiyar kayan aikin hakowa ce wacce ke haɗawa. da hakowa tsarin da dunƙule iska matsawa tsarin a cikin daya. Yana iya yin rawar jiki a tsaye, mai karkata da kuma ramukan kwance, kuma ana amfani da shi don hako ramukan fashewa da ramukan da aka riga aka fashe a ramin budadden ayyukan hakar ma'adinai da fasa-kwauri. Sanye take da babban inganci tsarin tarin ƙura.

Samfura:BACZ843

Aika tambaya

Drill compressor Integrated buɗaɗɗen rig rig ɗin kayan aikin hakowa ne wanda ke haɗawa

da hakowa tsarin da dunƙule iska matsawa tsarin a cikin daya. Yana iya yin rawar jiki a tsaye, mai karkata

da kuma ramukan kwance, kuma ana amfani da shi don hako ramukan fashewa da ramukan da aka riga aka fashe a ramin budadden

ayyukan hakar ma'adinai da fasa-kwauri. Sanye take da babban inganci tsarin tarin ƙura.

Ƙarfin tallafi	Yuchai / Cummins
Ƙarfin Ƙarfi	78/110 kW
Diamita na hakowa	90-120 mm
Zurfin hakowa na tattalin arziki	30 m
Sandar hakowa	6+1, Φ64 mm x 3000 mm / Φ64 mm x 2000 mm
Inci/DTH guduma	3"/4
Matsin Aiki	1.5 Mpa
Amfanin iska	12m3/min
Karfin juyi (Max.)	1650 N.M
Gudun juyawa	0 ~ 150 r/min
Hanyar Ciyarwa	Silinda + Sarkar Roller
Gudun tafiya	0 ~ 2.5 km/h
Ƙarfin hawan hawa	25 °
Fitar ƙasa	mm 340
Nauyin cikakken inji	6880 kg
Girman waje (LxWxH)	6100 x 2300 x 2600 mm
Taurin hakowa	f=6~20
Girman tankin man dizal	230 l
Hanyar tattara ƙura	8-cell busasshen kura mai tarawa
Isar da iskar da aka ƙididdigewa	12m³/min
Matsa lamba mai ƙima	15 bar
Matakin matsawa	matakin 1
Injin	Kumin 162 kW
Diamita na rami	90-115 mm
Zurfin hakowa na tattalin arziki	30m
Jagora	Karfe katako
Juya juyi	2500N.m
Juyawa gudun	0 ~ 120 r/min
Ci gaba da bugun jini	4150 mm
Gudun tramming	Mai sauri 3km/h Slow 1.5km/h
Motar juyawa	Musamman 6K
Compressor	Mataki ɗaya: 14 m3 17 mashaya
Nauyi	10 T
Gabaɗaya girma	8800 x 2300 x 2600 mm
